‹ Home › Inventory › 2026 Harley-Davidson® RH1250S Sportster™ S N303221

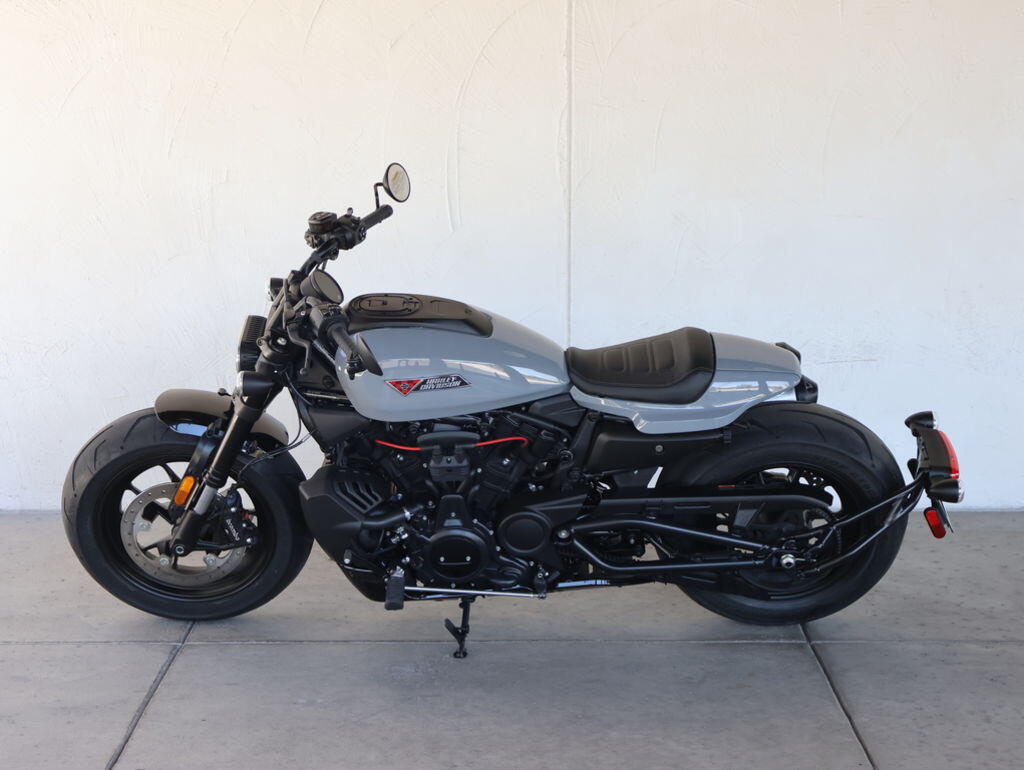

STK# N303221 2026 Revolution Max RH1250S Sportster S finished in Dark Billiard Gray! This unit is available today! Call today to secure your deposit. 2026 Harley-Davidson® Sportster® SWhat Came Before, Refined for Now With 121 hp from the liquid-cooled Revolution Max® 1250T motor, a wide front tire, 2-1-2 scrambler-style exhaust, and suspension tuned to optimize performance and rider comfort, the 2026 Sportster S reimagines classic styling with sharp, modern intent. Inspired by the iconic Sportster Forty-Eight, it channels Harley-Davidson heritage into a bike built to go harder, handle sharper, and look better doing it. Features may include: Lines Drawn to Pull you In A vintage tank medallion nods to the Sportster lineup’s past, while classic lines and a high-mount 2-1-2 exhaust pull from its racing roots. Blacked-out finishes, premium paint, and that fat front tire load the stance with muscle and intent. Highlighted Cooling Fins + Blacked-Out Powertrain New highlighted cooling fins and blacked-out finishes sharpen the look while keeping true to the lines of one of Harley-Davidson’s most beloved classic V-Twins. Vintage-Inspired Tank Medallion The tank medallion wears the Sportster’s history proudly, etched into a design tuned for speed, precision, and purpose built into every line Revolution Max 1250T Motor The liquid-cooled 1250T puts out 121 horsepower with torque on tap, ready the moment you roll on. More Tech Than the Ride Lets On Multiple ride modes, integrated navigation, and cruise control all work quietly in the background. It’s advanced engineering built to disappear once the road takes over. Round 4” (102 mm) TFT Infotainment The round 4-inch (102 mm) TFT serves up maps, audio, and bike data in one clean view, ready the second you glance down and gone the second you look back up.

Specifications

Dimensions

add remove
- Length:

  89.4 in
- Overall width:

  33.1 in
- Overall height:

  42.7 in
- Seat height, unladen:

  30.1 in
- Ground clearance:

  3.5 in
- Rake (steering head):

  30
- Trail:

  5.8 in
- Wheelbase:

  59.8 in
- Tires, front specifications:

  160/70R17 73V
- Tires, rear specifications:

  180/70R16 77V
- Fuel Capacity:

  3.1 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  487 lbs
- Weight, in running order:

  502 lb
- Tire, type:

  Dunlop® Harley-Davidson Series, radial
- Fork angle:

  28
- Reserve fuel capacity, fuel injection:

  0.8 gal
- Gross axle weight rating, front:

  359 lbs
- Gross axle weight rating, rear:

  595 lbs
Engine

add remove
- Engine:

  Revolution® Max 1250T
- Bore:

  4.1 in
- Stroke:

  2.8 in
- Displacement:

  76.40 in³
- Compression ratio:

  12.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1-into-2; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  92.9 ft-lb
- Engine torque (RPM):

  6000
- Horsepower:

  121 HP / 90 kW @ 7500 rpm
- Lean angle, right (deg.):

  35
- Lean angle, left (deg.):

  35
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  49 mpg (5.1 l/100km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  12.21
- Gear ratios (overall) 2nd:

  9.022
- Gear ratios (overall) 3rd:

  6.994
- Gear ratios (overall) 4th:

  5.641
- Gear ratios (overall) 5th:

  4.731
- Gear Ratios (overall) 6th:

  4.131
Chassis

add remove
- Front fork:

  43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps
- Rear shocks:

  Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
Infotainment

add remove
- Screen size:

  4 in
- Type:

  Color TFT
- Headset specifications (if equipped):

  Bluetooth
- Languages:

  Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Headset function only
- Vehicle information screen:

  TPMS, Engine temp, Battery Voltage, Ambient Air Temp
- USB:

  Charging and Instrument update, USB-C, 5V, 3A
- Bluetooth:

  Phone/Media Supported
