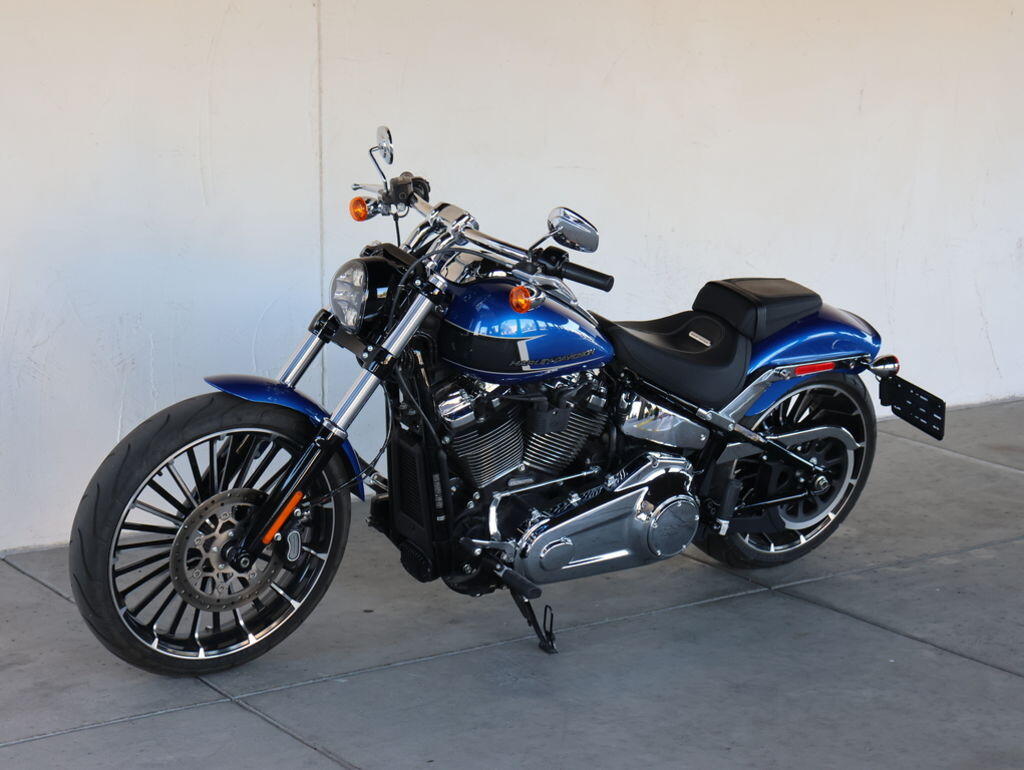

STK# U022955 2024 Harley-Davidson® Breakout® STK# U022955 2024 Harley-Davidson® Breakout®WAKE UP YOUR SENSES WHILE STEALING GLANCES.
Features may include:
MILWAUKEE-EIGHT® 117 ENGINE
This air- and oil-cooled engine is the pinnacle of torque and displacement in factory-installed, regular-production Harley-Davidson powertrain.
HEAVY BREATHER
High-performance Heavy Breather intake with forward-facing exposed filter element flows more air into the engine.
CHROME APPEAL
Polished chrome adorns everything from the fender supports, side covers, and muffler shields, to the turn signals, mirrors, and Heavy Breather intake.
WHEELS
The 21-inch front and 18-inch rear cast aluminum wheels have 26 spokes with black finishes and machined details.
TWO-INTO-TWO EXHAUST
High-performance, offset shotgun exhaust improves mid-range torque and produces a strong, stirring note.
CHASSIS
Softail chassis reduces weight and improves rigidity while maintaining the classic look of a hard tail.
Specifications
Dimensions
addremove
Length:
93.3 in
Seat height, unladen:
26.2 in
Ground clearance:
4.5 in
Rake (steering head):
34
Trail:
5.7 in
Wheelbase:
66.7 in
Tires, front specifications:
130/60B21,63H,BW
Tires, rear specifications:
240/40R18,79V,BW
Fuel Capacity:
5.0 gal
Oil capacity:
5 qt.
Weight, as shipped:
653 lbs
Weight, in running order:
683 lb
Tire, type:
Michelin® Scorcher® "11" front and rear
Engine
addremove
Engine:
Milwaukee-Eight™ 117
Bore:
4.1 in
Stroke:
4.5 in
Displacement:
117.35 in3
Compression ratio:
10.2:1
Fuel system:
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust:
2-into-2 staggered; catalyst in muffler
Performance
addremove
Engine torque testing method:
EC 134/2014
Engine torque:
123.2 ft-lb
Engine torque (RPM):
3500
Horsepower:
101 HP / 75 kW @ 4750 rpm
Lean angle, right (deg.):
26.8
Lean angle, left (deg.):
26.8
Fuel economy testing method:
EU 134/2014
Fuel economy:
47 mpg (5 l/100 km)
CO2 emissions testing method:
EU 134/2014
CO2 emissions :
135 g/km CO2
Powertrain
addremove
Primary drive:
Chain, 34/46 ratio
Gear ratios (overall) 1st:
9.311
Gear ratios (overall) 2nd:
6.454
Gear ratios (overall) 3rd:
4.793
Gear ratios (overall) 4th:
3.882
Gear ratios (overall) 5th:
3.307
Gear Ratios (overall) 6th:
2.79
Chassis
addremove
Front fork:
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Front and rear black, Split 7-spoke floating rotors
Brakes, caliper type:
4-piston fixed front and 2-piston floating rear
Electric
addremove
Lights (as per country regulation), indicator:
All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
Gauges:
2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
