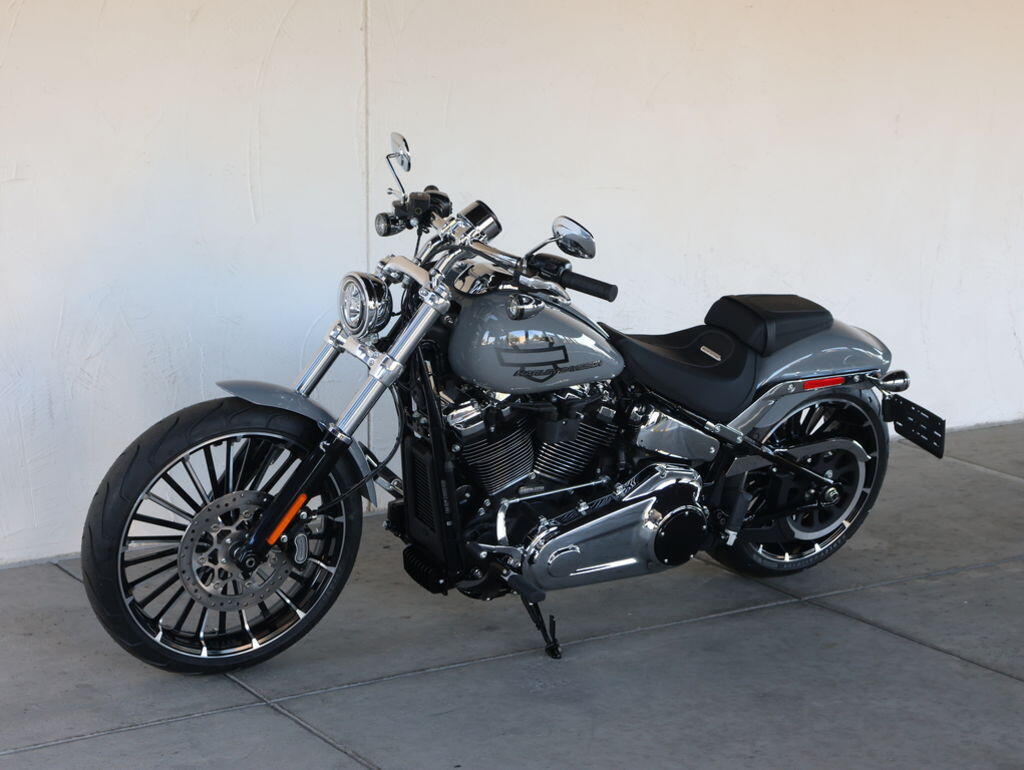

‹ Home › Inventory › 2026 Harley-Davidson® FXBR Breakout™ N012372

STK# N012372 2026 Softail FXBR 117ci Breakout in Dark Billiard Gray w/ chrome trim! This unit is available today! Call today to secure your deposit. STK# N012372 2026 Softail FXBR 117ci Breakout in Dark Billiard Gray w/ chrome trim! This unit is available today! Call today to secure your deposit. 2026 Harley-Davidson® Breakout®Why Blend in When You Can Break Out? With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight® 117 Custom, two new paint options, and much more. Features may include: Loud In All the Right WaysWith a long 34 degrees of rake, a wide 240mm rear, and a tall 21” (533 mm) up front, the 2026 Breakout accentuates its chopper lines with some modern edge. A bobtail fender keeps it lean, while LED lighting brings the view up to date.5.75” (146 mm) LED Headlamp + LED Turn SignalsBright, clean, and impossible to ignore. A 5.75” (146 mm) LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.Boldly Profiled 240mm Rear TireA massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.34 Degrees of Pure Chopper StanceThat raked-out front end is a defining part of the Breakout® silhouette and a nod to its custom heritage. It’s stretched and ready to stand apart from the factory.Paint + Graphics Worthy of a LegendThe 2026 Breakout® turns heads before the motor even fires, thanks to two new factory finishes: Blood Orange and Teal Thunder. They join Vivid Black, Dark Billiard Gray, and Iron Horse Metallic, each one bold enough to wear the Breakout® name.Where Show Meets GoChrome won’t get you home, but the Milwaukee-Eight® 117 Custom on the 2026 Breakout definitely will, thanks to its Touring Intake and new performance-tuned 2-into-2 exhaust.

Specifications

Dimensions

add remove
- Length:

  93.5 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  655 lbs
- Weight, in running order:

  681 lb
- Tire, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
