‹ Home › Inventory › 2023 Harley-Davidson® FLHXSE CVO™ Street Glide® U953546T

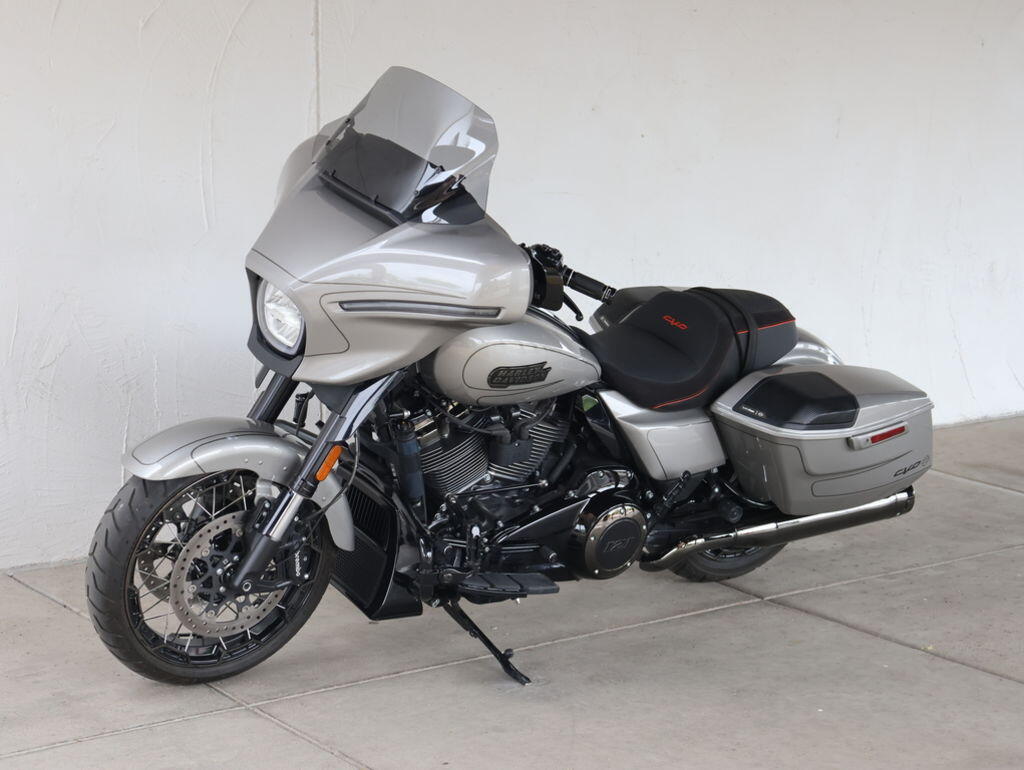

STK# U953546T 2023 Harley-Davidson® CVO™ Street Glide® finished in Dark Platinum with only 4,358 actual miles. STK# U953546T 2023 Harley-Davidson® CVO™ Street Glide®THE ALL-NEW CVO™ STREET GLIDE™ AN ICON, REIMAGINED FOR THE ROAD AHEAD Features may include: FORM FOLLOWS EMOTIONFLOW STATE Born from the rich lineage that came before it and sculpted by wind tunnel, every surface of the CVO Street Glide has been reimagined and refined, creating a seamless visual flow from the tip of the front fender through to the tail of the rear saddlebags. BATWING FAIRING The instantly recognizable and iconic batwing fairing takes on new life with a sculpted silhouette, fully-integrated LED lighting and splitstream vent opening. Using computational fluid dynamics to improve aerodynamic efficiency, the CVO Street Glide achieves optimal aero performance and rider comfort with a striking new take on a classic design. SIGNATURE LED LIGHTING Seamlessly integrated into the CVO Street Glide design, the full LED lighting package optimizes visibility, integrates turn signals and accentuates the lines of the batwing fairing, creating a distinctive look that’s instantly recognizable, day or night. FUEL TANK The CVO Street Glide’s 6-gallon tear-drop fuel tank is long and lean with a tailored profile and distinct beveled edge. WHEELS The CVO Street Glide is fitted with 19” front and 18” rear combo cast laced wheels and equipped with Tire Pressure Monitoring System (TPMS). SADDLEBAGS A final extension of the aggressive lines and athletic build of the fairing and fuel tank, the saddlebags increase overall luggage volume capacity and complete the aggressive stance of the CVO Street Glide. PAINT AND FINISHES Available in Dark Platinum with Bright Smoked Satin pinstriping or two-tone Whiskey Neat and Raven Metallic with airbrushed details and pinstriping. Each is complemented with either gloss black/chrome or scorched chrome accents for a total package that accentuates the new body lines and highlights the CVO ethos of obsessive attention to detail. ELEVATED RIDE, POWERED BY INNOVATION.12.3” TFT DISPLAY The latest innovation in rider connectivity, the crystal-clear, anti-reflective surface of the 12.3” touch-screen color TFT display replaces analog gauges and puts navigation and infotainment at your fingertips. SKYLINE™ OS The customizable in-dash experience with three unique display options, navigation, and an all-new suite of connected infotainment features. RIDE MODES Ride Modes electronically control performance characteristics and the level of safety technology intervention. Each of the three standard and two customizable ride modes bring to life a unique combination of power delivery, engine braking, Cornering Antilock Braking System (C-ABS) and Cornering Traction Control System (C-TCS) settings. PREMIUM AUDIO The CVO Street Glide is equipped with the Rockford Fosgate® Stage II premium audio system featuring a 4-channel 500-watt RMS amplifier that powers integrated fairing and saddlebag speakers. A MORE DYNAMIC TOURING EXPERIENCE.MILWAUKEE-EIGHT® VVT 121 POWERTRAIN The highest displacement powertrain ever to be factory-installed on a Harley-Davidson® Touring motorcycle, the Milwaukee-Eight VVT 121 engine features liquid-cooled cylinder heads, variable valve timing (VVT) and a new intake tract. The increased displacement produces more power and torque than the Milwaukee-Eight 117 engine, while VVT broadens the overall powerband and improves fuel economy.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.0 in
- Rake (steering head):

  26
- Trail:

  6.7 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  800 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  0.062 m³ (2.2 cu ft)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® VVT 121
- Bore:

  4.1 in
- Stroke:

  4.6 in
- Displacement:

  121.00 in³
- Compression ratio:

  11.4:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  135.0 ft-lb
- Engine torque (RPM):

  3500
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, front type:

  Combo Cast Laced
- Wheels, rear type:

  Combo Cast Laced
- Brakes, caliper type:

  32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Infotainment

add remove
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  125
- Speakers:

  4
- Speaker size:

  Two 6.5in fairing speakers, and two 5x7in saddlebag speakers
- Headset specifications (if equipped):

  Harley-Davidson® Audio 30K Wireless or 50S Wireless Headset depending on configuration
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  N/A
- Languages:

  English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
- Bluetooth:

  Phone/Media Player, Headset
